Plastic overmolding joins two or more materials into one product. This method makes items stronger, better looking, and more useful. For instance, it improves grip on tools and shields surfaces from water and rust, which helps products last longer. Many industries use overmolding to make smarter designs and fix production problems, including metal machining. The overmolding market is growing fast; it was worth $3.45 billion in 2021 and is expected to grow 6.5% yearly until 2028. Overmolding is important in medical tools and metal machining as well.
What is plastic overmolding?
Definition and overview of plastic overmolding
Plastic overmolding is a special process that joins materials together. It uses injection molding to combine two or more materials into one product. Usually, a hard base material, called the substrate, is covered with a softer layer like TPE. This makes the product stronger, last longer, and look better.
- Overmolding can use single-shot or two-shot methods.
- It combines parts into one, skipping extra assembly steps.
- It’s often used for rubber grips or water-resistant seals.
This process needs accurate mold designs and tools, which cost money upfront. But it saves money for large-scale production because it’s efficient.
Key materials used in overmolding, including TPE and TPU
Two common materials in overmolding are TPE and TPU. Each has its own benefits:
- TPE:
- Flexible and strong.
- Can be recycled and is easy to work with.
- Found in toothbrushes, drill handles, and razors.
- TPU:
- Very durable and customizable.
- Used in medical tools like catheters and bags.
- Resists shocks, scratches, and water, making products last longer.
Both materials improve grip, make products comfortable to use, and help them last longer.
Difference between overmolding and insert molding
Overmolding and insert molding are similar but not the same. The table below shows how they differ:
| Process | Description | Applications |
|---|---|---|
| Overmolding | Layers two materials into one (e.g., rubber grips on tools). | Used in tools and everyday items. |
| Insert Molding | Adds pre-made parts (like metal pieces) into plastic. | Common in cars and electronics. |
Overmolding adds layers for better looks and use. Insert molding puts ready-made parts into plastic for strength or structure.
Applications of plastic overmolding
Plastic overmolding is used in many industries. It makes products stronger, last longer, and look better. Let’s see how it helps in electronics, medical tools, and car parts.
Consumer electronics, like phone cases
Have you held a soft but strong phone case? That’s plastic overmolding at work. It mixes materials like TPE with hard plastics. This makes cases tough and easy to hold. Overmolding also protects against scratches, stains, and drops.
For example, Versaflex™ CE 3320-80 is used in phone cases. It stops stains and makes cases stronger. Nymax™ PA6 adds toughness and resists chemicals. These materials make phone cases better and more reliable.
| Case Study | Description |
|---|---|
| Optical Clarity for Phone Case | Versaflex™ CE 3320-80 stops stains and adds strength. |
| Protective Phone Case | Nymax™ PA6 makes cases tough and chemical-resistant. |
| Overmolding for Wireless Power Bank | Versaflex™ CE grade adds stain resistance and durability. |
Medical devices, like surgical tools and grips
In healthcare, overmolding improves tools and safety. It’s used in surgical tools, dental instruments, and grips. Soft materials are added to hard ones for better comfort and control. This helps reduce hand strain for doctors and nurses.
Overmolding also makes tools lighter and safer. Gas-assist molding cuts weight, while TPE improves grip and reduces shaking. These features make medical tools easier to use and more effective.
| Benefit | Description |
|---|---|
| Improved Ergonomics | Makes tools more comfortable and easier to hold. |
| Weight Reduction | Makes tools lighter for better handling. |
| Enhanced Safety Features | Adds grip and reduces shaking for safer use. |
Automotive parts, like soft-touch interiors
In cars, overmolding improves parts by mixing materials. Dashboards and door panels feel soft and last longer. Overmolding also protects parts from wear and tear.
Car makers use EPP foam with steel to make strong, light parts. Overmolding also reduces noise and shaking in mounts. This makes driving smoother and more comfortable. Overmolding helps meet the needs of modern car designs.
Plastic overmolding keeps improving products in many industries. It makes things like phone cases, medical tools, and car parts better and longer-lasting.
Industrial tools and equipment, like comfortable handles

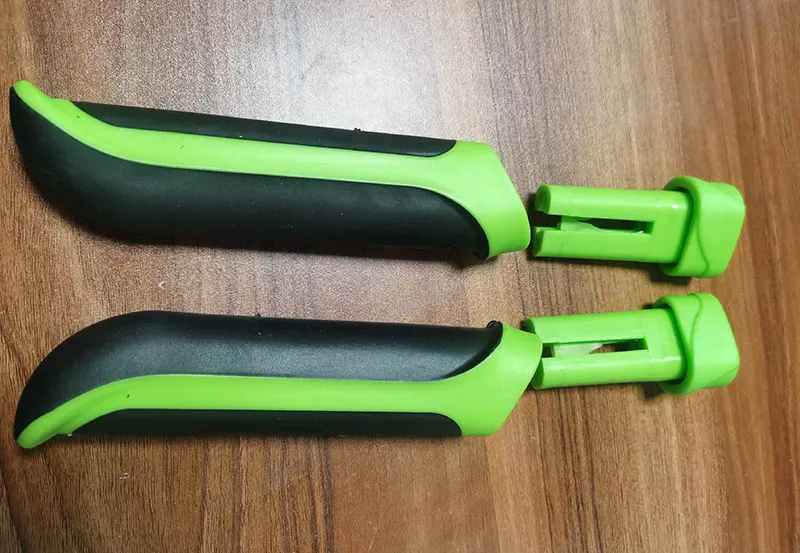

Plastic overmolding helps make industrial tools better. It mixes hard and soft materials to create comfy handles. Tools like drills, hammers, and wrenches often have soft grips from overmolding. These grips reduce hand pain and improve control. This makes work safer and easier.
Overmolding also makes tools last longer. It bonds materials tightly, protecting them from damage. For example, overmolded handles don’t crack easily and absorb vibrations. This is very helpful for power tools, which vibrate a lot and can tire users.
Here’s how overmolding helps tools:
| Feature | Benefit |
|---|---|
| Better Grip | Gives a non-slip surface for good control. |
| More Comfort | Lowers hand strain during long use. |
| Less Vibration | Reduces shaking, making tools safer to use. |
| Stronger Tools | Protects tools and makes them last longer. |
With overmolding, companies make tools that are safer, stronger, and easier to use.
Hybrid parts combining plastic overmolding with metal work
Mixing plastic overmolding with metal work has changed manufacturing. This method combines metal’s strength with plastic’s flexibility. The result is lightweight, strong, and useful parts. These parts are used in cars and planes, where lighter weight saves energy.
In cars, overmolding joins plastic to metal parts like brackets. This makes the parts strong enough to handle stress. For example, hybrid molding creates light but tough parts. These parts lower car weight and improve fuel use.
Here’s why mixing overmolding with metal work is useful:
| Aspect | Description |
|---|---|
| Strong Bonding | Makes plastic and metal stick well together. |
| Lightweight Design | Lowers weight for better energy savings. |
| Faster Production | Speeds up making parts with good quality. |
| Many Uses | Works in cars, planes, and machines. |
This method also supports eco-friendly goals. It uses less material and energy, helping the environment. Whether for cars or tools, this mix of overmolding and metal work is a smart choice.
Benefits of plastic overmolding
Stronger and longer-lasting products
Plastic overmolding makes products tougher and last longer. It mixes materials like TPE with hard plastics to stop damage. TPE layers protect items from shocks, noise, and shaking. This helps tools, electronics, and car parts work better for longer.
Overmolding also improves grip and comfort. For example, soft handles on tools reduce hand pain and give better control. These features make overmolded products easier to use and more dependable in many industries.
Better looks and comfortable designs
Overmolding helps create products that look good and feel nice. It offers many colors, textures, and finishes to make items stand out. For example, phone cases get a modern, stylish look with overmolding.
This process also makes products more comfortable. TPE adds softness and flexibility for better grip. Medical tools use this to make designs that are easy to hold and reduce strain. Overmolding can even shape handles to fit different hands perfectly.
- Why overmolding improves design:
- Makes products look stylish and unique.
- Combines softness with strength.
- Adds comfort and better grip for users.
Saves money and time in production
Plastic overmolding makes manufacturing faster and cheaper. It removes extra steps like manual assembly, making production simpler. Methods like insert molding cut costs by skipping extra parts, like screws or threads.
This process also speeds up making products. Machines ensure materials stick well, reducing mistakes and waste. By simplifying production and improving quality, overmolding saves money and delivers great products quickly.
Tip: Overmolding is a great option for making strong, stylish, and affordable products.
Flexible designs for complex parts
Plastic overmolding is great for making detailed and useful designs. It lets you join different materials into one part. This helps create complex shapes and features without extra steps. Many industries use it for smart and efficient designs.
A cool example is Film Insert Molding (FIM). This method adds a decorated film during molding. It makes parts with detailed designs and useful surfaces in one step. For example:
- A company used FIM to make parts with fancy designs.
- They skipped extra decoration steps by combining molding and design.
- This saved money and made better-looking parts.
This shows how overmolding makes production easier and creates high-quality parts.
Overmolding also helps make comfy designs. Handles, grips, or surfaces can be shaped for specific needs. For example, tools with soft grips are easier to hold and reduce hand pain. This makes products work better and feel nicer to use.
Tip: Overmolding is perfect for unique shapes, cool designs, or multi-use parts. It saves time and improves product quality.
Whether for electronics, medical tools, or car parts, overmolding helps you create amazing designs. It combines materials and adds complex features, making it a key tool for modern manufacturing. With overmolding, you can make products that look and work better.
How does the overmolding process work?
Overview of the multi-step injection molding process
Overmolding uses several steps to join materials into one product. First, a hard material, called the substrate, is shaped. This becomes the base of the item. Next, a softer material is added on top of the base. This creates a strong bond and improves the product’s strength and use.
Think of it like making a sandwich. The base is the bread, and the softer material is the filling. The filling adds features like grip or protection. This method is common in making car parts, electronics, and tools. It helps create lightweight, strong, and comfortable designs.
Key steps, including substrate preparation and material layering
The process starts with preparing the base material. A hard material is melted and injected into a mold. High pressure ensures the mold fills evenly, making the base strong. After cooling, the next step begins.
In this step, a softer material is melted and added over the base. As it cools, the two materials stick together tightly. This process combines different materials to make items with special features. For example, soft grips or water-resistant layers. Industries like car-making use this to mix metal strength with plastic flexibility.
Common challenges and solutions in overmolding
Overmolding has some problems, but there are ways to fix them. Here are common issues and their solutions:
| Problem | Fix |
|---|---|
| Materials Don’t Match | Test materials to ensure they work well together. |
| Complex Mold Designs | Use computer programs to find and fix design problems early. |
| Process Errors | Run small tests to adjust machine settings for better results. |
By solving these problems, you can make the overmolding process smooth. Whether for gadgets or car parts, these fixes help create reliable and high-quality products.
Is plastic overmolding right for your project?
Things to think about, like material fit and design difficulty
Before using plastic overmolding, check some important things. Materials must work well together. How well they stick depends on their surface energy, makeup, and texture. Materials with high surface energy stick better. Heat properties also matter. Different materials expand or shrink at different rates. This can cause cracks or weak spots where they join.
Strength and toughness are also important. The part must handle its job without breaking. Tests like adhesion and heat cycling help check if materials are a good match. These tests make sure your design will work as planned.
Tip: Test materials in real-life conditions to avoid problems later.
Industries and projects that gain the most from overmolding
Plastic overmolding is useful in many industries. Here’s how it helps:
| Industry | Examples of Use |
|---|---|
| Hand Tools | Hammers, pliers, screwdrivers, knives, saws |
| Medical Devices | Syringes, needles, implants |
| Automotive | Dashboards, door handles, trim parts |
| Industrial Machines | Pumps, valves, equipment |
| Consumer Goods | Toys, gadgets, appliances |
For example, car makers use overmolding for soft dashboards and handles. In healthcare, it makes tools safer and easier to hold. Each industry uses overmolding to solve specific problems, like making things stronger or more comfortable.
Questions to ask when deciding on overmolding
When thinking about overmolding, ask these questions:
- Should the plastic conduct or block electricity?
- Are the material costs okay for your budget?
- Can you easily get the plastic you need?
- Does your design need features like grip or wear resistance?
Also, follow these tips to improve your design:
- Make sure TPE works well with the base material.
- Use sharp edges in designs to stop peeling.
- Keep TPE at the right temperature for strong sticking.
Lastly, check your supplier’s skills. Visit their factory to see their tools and quality. This ensures they can handle your production needs.
Note: Careful planning saves time and avoids expensive mistakes.
Plastic overmolding joins materials to make strong and useful products. It is used in electronics, healthcare, and cars, showing its flexibility. Overmolding helps improve products, lower costs, and create detailed designs.
Tip: Overmolding can make your product better and easier to use.
Think about what your project needs. Check if materials match, designs are simple, and features fit your goals. This will help you decide if overmolding is the best choice for your next idea.
