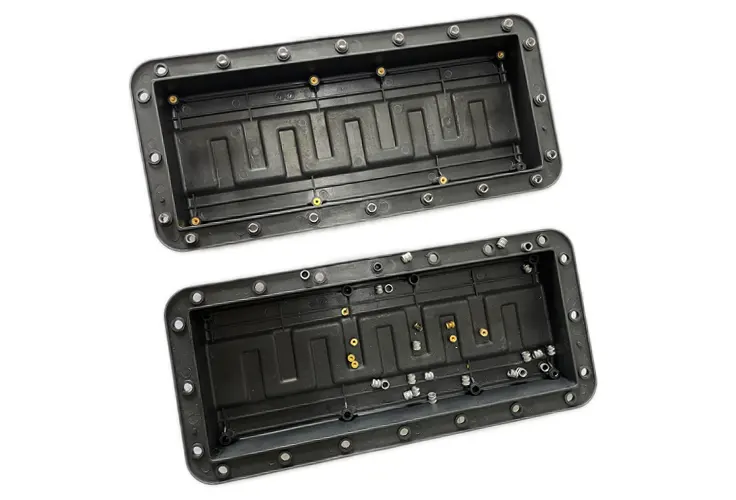

Insert molding is a type of injection molding process that combines plastic and non-plastic parts (inserts) into a single component. The inserts are commonly metal (but can also be ceramic, plastic, or electronic parts).
This process allows manufacturers to mold plastic around these inserts, producing a strong mechanical bond without adhesives or fasteners.
The core principle of insert molding is to integrate a pre-formed part (the insert)—usually made of metal or other rigid materials—into a plastic part during the injection molding process, so they become one solid, mechanically bonded unit.
Key Engineering Principles Involved
1. Mechanical Interlocking
Molten plastic flows around the insert and into any undercuts, holes, or grooves. Once it cools, the plastic locks tightly to the insert. This provides strong mechanical bonding without glue or fasteners.
Think of it like concrete poured around rebar—when it hardens, they work together.
2. Thermal Shrinkage
After molding, the plastic shrinks slightly as it cools. This natural shrinkage causes the plastic to grip the insert tightly.
This results in a firm press-fit or interference fit between the materials.
3. Material Compatibility & Adhesion
Some plastics (e.g., Nylon, PBT) can form molecular adhesion with metal surfaces. Surface treatment of inserts (e.g., knurling, roughening, or preheating) enhances adhesion. Certain resins chemically bond to treated insert surfaces.
4. Precision Mold Design
The mold is designed with precise cavities and insert placement pockets. Inserts must remain fixed in position during high-pressure injection (50–200 MPa), or defects will occur. Specialized clamps, magnets, or robotic arms are used to hold the insert steady.
5. Process Synchronization
The timing of insert placement, plastic injection, and cooling must be tightly controlled. Inserts must not move or overheat during injection. Robotic automation helps ensure high repeatability in fast cycles.
Insert Molding Process: Step-by-Step
Insert Preparation
The insert (metal pin, bushing, blade, etc.) is cleaned and sometimes preheated.
Preheating helps avoid sudden temperature gradients, which can cause warping or weak bonding.
Insert Placement
Inserts are manually or robotically loaded into the mold cavity.
Precision is key here: even slight misalignment can lead to defects.
Mold Clamping
The mold closes and clamps under high pressure, ready for injection.
Plastic Injection
Thermoplastic resin is heated and injected around the insert under high pressure (often between 50–200 MPa).
The material flows around the insert, completely enveloping and locking it in.
Cooling & Solidifying
The plastic cools and shrinks slightly, locking tightly to the insert.
The cooling time depends on material type and part thickness.
Ejection
The part is ejected from the mold—ready with insert locked in place.
Types of Inserts (with Expanded Use Cases)
Insert types vary widely depending on the product function, operating conditions, and end-user needs.
| Type | Description | Real-World Example |
|---|---|---|
| Threaded Inserts | Made from brass, steel, or stainless steel. They allow repeated assembly/disassembly without damaging the plastic. | Used in plastic housings for electronics, remote controls, consumer appliances. |
| Metal Pins/Shafts | Straight or stepped pins for guiding, rotating, or transmitting force. | Axles for automotive switches, handles, gears. |
| Electrical Contacts | Metal terminals, connectors, busbars inserted for electrical conductivity. | Plugs, power tool connectors, charging ports. |
| Blades/Needles | Sharp inserts like scalpel blades, surgical needles. | Razors, medical syringes, safety knives. |
| Heat Sinks | Aluminum/copper inserts for thermal management. | High-power LED housings, CPU cooling mounts. |
| Magnetic Inserts | Magnets encased in plastic for compact design. | Magnetic phone mounts, closures, toys. |
| Ceramic Inserts | Used for high insulation, wear resistance, or corrosion protection. | Sensor housings, medical probes, igniters. |
Equipment & Tooling for Insert Molding
Insert molding requires precision and coordination between injection equipment and insert handling. Here’s what’s involved:
Mold Components:
Custom cavity molds with insert pockets
Slide mechanisms for complex geometries
Ejector systems to safely release finished parts
Cooling channels to maintain mold temp
Handling Equipment:
Manual loading (low-volume jobs)
Pick-and-place robots or 6-axis robotic arms
Vibratory bowl feeders for high-volume, automatic insert loading
Vision systems for insert orientation and presence detection
Machine Requirements:
High-precision injection molding machines (vertical or horizontal clamp)
Insert holding features like magnetic/air/vacuum grippers
Barrel heaters and temperature controllers matched to the plastic resin
Advantages of Insert Molding (Expanded Breakdown)
Insert molding offers big value in cost, function, and performance, especially for integrated parts.
| Advantage | Description |
|---|---|
| 🔩 Strong Mechanical Bond | Eliminates adhesives or fasteners; plastic shrinks tightly onto the insert. |
| 🧠 Design Flexibility | Combine plastic’s lightness with metal’s strength in complex 3D shapes. |
| 🧹 Clean & Compact Assembly | Reduces component count, space, and weight. Ideal for miniaturized products. |
| 💸 Cost Savings | Reduces labor and post-molding assembly. Improves cycle time and repeatability. |
| ⚙️ High Precision & Consistency | Ideal for high-volume production of durable and accurate parts. |
| 🛡 Improved Safety & Reliability | Less chance of part loosening under vibration or impact. |
| ♻️ Environmentally Friendly | Lower material waste and energy use compared to mechanical assemblies. |
Materials Used in Insert Molding
To ensure proper adhesion and durability, material selection is critical.
Plastics (Matrix Materials):
| Type | Key Properties | Use Case |
|---|---|---|
| ABS | Impact resistance, good appearance | Consumer electronics, tool handles |
| PC (Polycarbonate) | High clarity, impact-resistant | Medical housings, LED covers |
| PA6/PA66 (Nylon) | Tough, wear-resistant, good chemical resistance | Automotive components, gears |
| PBT | Excellent dimensional stability, electrical properties | Electronic connectors |
| TPE/TPU | Flexible, soft-touch, overmold-friendly | Handles, grips, soft seals |
| PEEK | High-performance, chemical and heat resistance | Aerospace and medical devices |
Inserts (Substrates):
| Material | Reason for Use |
|---|---|
| Brass | Easy to machine, corrosion-resistant, common for threads |
| Stainless Steel | Strength + corrosion resistance |
| Aluminum | Lightweight, thermal conductivity |
| Copper | Excellent electrical/thermal conductivity |
| Zinc Alloy | Economical for casting inserts |
| Ceramic | High-temp and electrical insulator |
Applications of Insert Molding (Real-World Examples)
Insert molding is used in high-precision and mass-production industries, wherever strength, performance, and durability are required.
Electronics:
USB ports, headphone jacks, circuit board enclosures
Connector pins for automotive ECUs
LED light frames with thermal sink inserts
Automotive:
Sensor housings with pins
Airbag triggers with embedded metal tabs
Switches with metal rocker shafts
Medical:
Syringes with metal needles
Scalpels with plastic grips
Sensor probes with ceramic or metal inserts
Tools:
Screwdrivers with steel shafts and plastic handles
Power tool triggers
Utility knife housings
Industrial:
Valve levers with integrated bushings
Machine housings with grounding terminals
Common defects and their solutions
1. Inserts shifting:
– PROBLEM: Inserts may move during the injection molding process due to the impact of the molten plastic.
– Solution: Use locating pins or locating holes to hold inserts in place and ensure that the inserts are accurately aligned in the mold. Also, adjust injection parameters such as pressure, speed and temperature to minimize impact on the insert.
2. Poor bonding between insert and plastic:
– Problem: There may be a lack of sufficient adhesion between the insert and the plastic, resulting in separation of the product during use.
– Solution: Select the appropriate plastic material to ensure that it is compatible with the insert material. Use surface treatment techniques, such as chemical etching or sandblasting, to increase the surface roughness of the insert and improve adhesion. Sometimes adhesives can also be used to enhance bonding.
3. Deformation of inserts:
– Problem: Metal inserts may deform at high temperatures, especially during long injection molding cycles.
– Solution: Use inserts made of high-temperature resistant materials, or optimize injection temperature and time to reduce the time the insert is exposed to high temperatures.
4. Uneven shrinkage:
– Problem: Metal inserts and plastics have different shrinkage rates during cooling, which can lead to stress concentrations and product distortion.
– Solution: Design to take into account the differences in shrinkage of different materials and use mold compensation techniques, such as adjusting the temperature control and design of the mold.
5. Insert damage:
– Problem: In automated production lines, inserts may be damaged during transportation.
– Solution: Use soft materials or shock absorbers to protect inserts and ensure safety during transportation and handling.
6. Molding defects:
– Problem: Problems such as unsaturated molds, fusion lines, air pockets and warpage deformation may occur.
– Solution: Simulation by CAE software (e.g. Moldflow), optimization of pouring system and cooling system, adjustment of injection parameters such as mold temperature, melt temperature, holding time and cooling time.
7. Cost and efficiency:
– Problem: Insert injection molding may increase production cost and extend molding cycle time.
– Solution: Optimize the mold design, reduce the number of trial molds, use automated equipment to improve production efficiency, and at the same time through orthogonal tests and other statistical methods to find the most economical process parameters.
Solving these problems usually requires comprehensive consideration of material selection, mold design, injection molding parameters and quality control strategies to ensure the reliability and performance of insert molded products. The injection molding process of insert molding involves many complex problems.
Difference Between Insert Molding and In-Mold Labeling (IML)
Purpose
Insert Molding: Mainly used to add functional features such as threaded inserts, electrical contacts, or reinforcement to the plastic part.
IML: Primarily for decoration, branding, or surface finishing without needing post-processing like painting or labeling.
Materials Used
Insert Molding: Commonly uses metal inserts (brass, stainless steel), ceramic, or hard plastic parts.
IML: Uses printed films or labels, usually made from PP or PE to match the base plastic for good bonding.
Applications
Insert Molding: Used in electrical components, automotive parts, medical devices, and consumer electronics (e.g., USB connectors, knobs, housings).
IML: Common in packaging, household goods, containers, and consumer products that require high-quality surface graphics.
Process Complexity
Insert Molding: Requires precise placement of inserts (manually or with automation), with considerations for alignment and bonding strength.
IML: Involves accurate label positioning and static adhesion during injection, often demanding precision automation and clean label handling.
Final Product Characteristics
Insert Molding: Enhanced mechanical or electrical functionality, robust part integration.
IML: Aesthetic, scratch-resistant, and permanent decorative surfaces.
Conclusion
Insert molding is a powerful and efficient manufacturing process that combines the strength and functionality of metal or other components with the flexibility and cost-effectiveness of plastic.
By embedding inserts directly into plastic parts during the injection molding cycle, manufacturers achieve strong mechanical bonds, improved part performance, and streamlined assembly—all in a single step.
This technique not only enhances product durability and precision but also reduces part count, lowers labor costs, and allows for more compact and sophisticated designs.
With its wide material compatibility and applications across industries such as automotive, medical, electronics, and industrial tools, insert molding continues to be a cornerstone of modern integrated manufacturing.
In summary, insert molding delivers high-performance, multi-material components with excellent reliability, efficiency, and design freedom—making it an ideal solution for today’s demanding engineering challenges.
