Ultimate Guide to CNC Spindles: Types, Functions, Selection & Maintenance

In the realm of CNC machining, the spindle stands as a pivotal component—directly governing the cutting performance, surface finish quality, and overall efficiency of the manufacturing process.

Often called the “heartbeat” of the CNC machine, the spindle converts rotary motion into cutting power and serves as the central conduit that precisely orchestrates speed, torque, and tool engagement.

We cannot overstate the strategic importance of the CNC spindle. Its design and operational integrity impact not only dimensional accuracy and repeatability but also dictate achievable tolerances and cycle times.

Whether machining aerospace-grade titanium or micro-finishing delicate polymer components, spindle performance is the deciding factor in productivity and part quality.

This guide aims to deliver an in-depth technical exploration of CNC spindles.

We will examine the principal types of spindles used in modern machining centers, dissect their internal structure and functional components, map their suitability across various industrial applications, and outline key maintenance protocols to sustain long-term performance.

For engineers and technical professionals seeking to optimize spindle reliability, efficiency, and integration into advanced manufacturing workflows, this guide serves as a comprehensive reference.

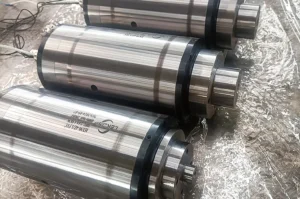

What Is a CNC Spindle and How Does It Work?

It transforms electrical energy into mechanical motion, facilitating the interaction between the tool and material across a wide range of machining processes including milling, drilling, routing, and grinding.

Primary Functions of a CNC Spindle

The CNC spindle fulfills three essential roles within a machining system:

• Rotational Tool Movement: It imparts high-speed rotation to the cutting tool, enabling efficient material removal.

• Torque Delivery: Depending on material hardness and machining strategy, the spindle provides the necessary torque to perform heavy-duty or high-speed operations.

• Speed Regulation and Control: Through direct integration with CNC software and controllers, the spindle speed (RPM), direction (clockwise or counterclockwise), and dwell time can be finely tuned to suit the requirements of each machining cycle.

This dynamic control is critical for optimizing cutting parameters, reducing tool wear, and achieving consistent part quality across complex geometries.

Key Internal Components of a CNC Spindle

A high-performance CNC spindle is composed of several precisely engineered components, each contributing to its accuracy, stability, and durability:

• Shaft: The spindle shaft is the central rotating element that transmits torque from the motor to the cutting tool. It must be finely balanced and manufactured to tight tolerances to avoid vibration and ensure smooth operation at high speeds.

• Bearings: Bearings are pivotal to maintaining the concentricity and axial stability of the rotating shaft. Depending on the application, different bearing types are used:

  • Ball bearings for high-speed applications

  • Roller bearings for higher load capacities at lower speeds

  • Magnetic bearings in advanced systems for frictionless, ultra-high-speed performance

• Drawbar: The drawbar mechanism is responsible for clamping and releasing the tool holder inside the spindle taper. Automated drawbars enable rapid tool changes in machining centers, enhancing productivity and repeatability.

• Motor: The spindle motor generates the mechanical rotation. Spindles may utilize various motor configurations:

  • Belt-driven motors for modular torque-speed flexibility

  • Direct-drive motors for improved speed response and compact design

  • Integral (built-in) motors for maximum precision, used in high-speed, high-accuracy machining

• Spindle Housing: This encases all internal components, providing structural integrity and protection. Modern spindle housings integrate:

  • Cooling systems (air or liquid-based) to maintain thermal stability

  • Lubrication systems to minimize friction and wear

  • Vibration damping structures to reduce chatter and noise

Together, these components function as a harmonized system to deliver precise, stable, and programmable rotary motion.

As machining applications continue to evolve in complexity and demand, understanding spindle anatomy and dynamics is critical for engineers aiming to design, operate, or maintain high-performance CNC equipment.

Historical Evolution of CNC Spindles

The evolution of the CNC spindle parallels the broader trajectory of industrial and manufacturing advancements, progressing from simple manual mechanisms to highly integrated, sensor-equipped systems at the core of intelligent manufacturing.

Early Developments: Manual Spindles and the Lathe

The spindle concept traces back to ancient times, most notably in the operation of the manual lathe—a tool widely regarded as the foundation of machining.

In these early systems, the spindle was a manually rotated wooden or metal shaft, constrained between fixed bearings, used to hold and rotate the workpiece.

Torque was applied via treadle, bow, or hand-driven mechanisms, offering minimal control over speed or consistency.

These rudimentary spindles established the essential function still preserved in today’s CNC systems: the conversion of rotational motion into productive work via material removal.

Industrial Revolution: Powered Spindles Emerge

The Industrial Revolution marked a transformative period in spindle development.

With the advent of steam engines and later electric motors, machine tools began incorporating powered spindles capable of maintaining consistent rotation speeds independent of manual effort.

This allowed for a significant increase in productivity, uniformity, and repeatability.

By the late 19th and early 20th centuries, spindles driven by mechanical belts or gear trains became standard in lathes, milling machines, and drilling tools.

These systems allowed for variable speed control and interchangeable tooling—critical features that laid the groundwork for automation.

Modern Advancements in CNC Spindle Technology

The transition from manual and belt-driven spindles to motorized and electronically controlled systems began in earnest during the second half of the 20th century.

As CNC technology emerged, so did the demand for spindles capable of supporting high-speed, precision-controlled operations.

Key modern spindle innovations include:

• Motorized and Integral Spindles: By embedding the motor directly into the spindle body (integral motor spindles), machines achieve greater compactness, faster acceleration, and higher dynamic balance. These spindles eliminate belt slippage, reduce mechanical complexity, and are capable of extreme RPMs suited to micro-machining and high-speed finishing.

• High-Frequency Spindle Drives: With the integration of high-frequency inverters and digital controllers, spindles now operate at tens of thousands of RPM, suitable for non-ferrous metals, plastics, and advanced composite materials. These drives provide real-time speed modulation and adaptive control for varying load conditions.

• Integrated Sensors and IoT Capabilities: The latest generation of CNC spindles are equipped with embedded sensors to monitor temperature, vibration, torque, and bearing health in real time. Leveraging Industrial Internet of Things (IIoT) frameworks, these smart spindles enable predictive maintenance, optimize toolpaths based on performance data, and support closed-loop feedback systems for adaptive machining.

In today’s smart factories, CNC spindles are no longer isolated mechanical components—they are cyber-physical systems, fully integrated into the digital thread of modern manufacturing.

Their continued evolution plays a pivotal role in advancing precision, automation, and intelligent control in high-performance machining environments.

Types of CNC Spindles

CNC spindles are classified based on their drive mechanism, internal architecture, and intended application.

Each spindle type presents a distinct balance between speed, torque, vibration control, and integration complexity—factors that must align with material characteristics and production objectives.

Understanding the advantages and limitations of each spindle configuration is essential for informed system selection and optimal machining performance.

Belt-Driven Spindles

Belt-driven spindles are among the most traditional and widely used configurations, particularly in conventional CNC milling and turning centers.

In this design, a motor—usually located outside the spindle assembly—drives the spindle shaft via a belt and pulley system.

• Pros:

  • Cost-effective: Lower upfront and replacement costs compared to direct-drive or integral spindles.

  • Ease of maintenance: Belt tension and pulley systems are relatively simple to service and replace.

  • High torque: Well-suited for low-speed, high-load applications such as heavy-duty milling or roughing operations.

• Cons:

  • Belt slippage: Under dynamic load changes or at high speeds, belts may slip, reducing spindle stability and accuracy.

  • Lower maximum RPM: The belt’s mechanical limits restrict high-speed operation, making it unsuitable for precision or micro-machining.

  • Vibration and noise: Increased mechanical complexity often leads to higher vibration levels and acoustic noise.

Direct-Drive Spindles

Direct-drive spindles eliminate intermediate transmission components by coupling the motor directly to the spindle shaft. This configuration offers superior control and responsiveness, especially in high-speed, high-precision environments.

• Pros:

  • High-speed capability: Direct connection allows spindles to reach very high RPMs with excellent acceleration and deceleration dynamics.

  • Reduced vibration: The absence of belts or gears minimizes mechanical losses and imbalance.

  • Efficient torque transfer: Maximum energy transfer from motor to tool results in superior dynamic performance.

• Cons:

  • Higher cost: Both initial acquisition and control system requirements are more expensive than belt-driven alternatives.

  • Heat generation: The proximity of the motor to the spindle can lead to thermal expansion, requiring active cooling solutions.

  • Complex servicing: Integrated components demand specialized diagnostic tools and repair procedures.

Motorized (Integral) Spindles

Motorized spindles, also known as integral or built-in motor spindles, integrate the electric motor windings directly into the spindle housing.

This ultra-compact, high-performance configuration is increasingly found in advanced machining centers, especially those engaged in ultra-precision or high-speed cutting.

• Pros:

  • Compact architecture: Space-saving design allows for tight machine envelopes and improved axis integration.

  • High-speed precision: Excellent for micro-machining, engraving, and surface finishing of metals and composites.

  • Low noise and vibration: High dynamic balance and minimal transmission losses lead to exceptionally quiet and smooth operation.

• Cons:

  • High cost: These spindles represent a significant capital investment and require precise environmental controls.

  • Lower torque at low RPM: Not ideal for heavy-duty roughing or operations requiring high cutting forces.

  • Specialized repair: Failures often necessitate factory-level servicing or complete spindle replacement.

Spindle Variations by Application

Spindle selection must be closely aligned with the material characteristics and machining objectives of a given application:

• Metal Machining: Requires spindles with high torque and rigidity to withstand cutting forces—belt-driven or direct-drive spindles are preferred.

• Plastics and Composites: Benefit from high-speed, low-vibration spindles—integral spindles often excel here.

• Woodworking: Demands spindles that can achieve high RPM with reliable chip evacuation—air-cooled direct-drive spindles are common.

• Advanced Composites: Require high-frequency spindles with integrated monitoring to prevent delamination and thermal damage.

Moreover, machine configurations may use:

• Single-spindle systems for general-purpose or custom machining, prioritizing flexibility.

• Multi-spindle setups (fixed or independently controlled) in high-volume environments to increase throughput and reduce tool changeover times.

Selecting the appropriate spindle type is a fundamental step in optimizing cutting performance, ensuring repeatability, and reducing total cost of ownership across the CNC machine lifecycle.

Technical Specifications and Design Features

The performance, durability, and application compatibility of a CNC spindle are governed by a range of interrelated technical specifications and mechanical design elements.

For engineers evaluating or specifying spindles, a clear understanding of these parameters is essential to ensure the system meets production demands without compromising precision or tool life.

Power Rating (kW or HP)

The power rating of a spindle—expressed in kilowatts (kW) or horsepower (HP)—defines its capacity to handle various materials and cutting operations.

It determines the torque available at different speeds and directly influences material removal rates.

• Low-power spindles (≤ 3 kW) are ideal for high-speed finishing, engraving, or machining of softer materials such as plastics, wood, or aluminum.

• Medium-power spindles (3–15 kW) offer a balance between speed and torque for general-purpose machining across a range of metals.

• High-power spindles (15+ kW) are designed for heavy-duty operations such as rough milling, deep-hole drilling, or the machining of hard alloys like titanium and Inconel.

Proper power matching is critical—overpowered spindles lead to inefficiency and heat issues, while underpowered units result in chatter, premature tool wear, and poor surface finish.

Speed Range

The speed range—typically from under 1,000 RPM up to more than 100,000 RPM—dictates the spindle’s suitability for different machining strategies:

• Low-speed spindles (≤ 5,000 RPM) are used for high-torque applications like boring, tapping, or heavy cutting of hard metals.

• Mid-range spindles (5,000–30,000 RPM) cover most milling and drilling operations across metal and composite materials.

• High-speed spindles (30,000–100,000+ RPM) are essential for ultra-precision machining, especially in aerospace, medical device, and mold-making industries.

An optimal spindle must balance speed and torque, ensuring stability throughout the speed envelope.

Tool Holding Mechanisms

Tool retention directly impacts machining accuracy, vibration control, and changeover time. Common tool holding technologies include:

• Collets: Flexible, cost-effective, and widely used in light-duty applications. However, they have limited clamping force and require manual tightening.

• Hydraulic Chucks: Offer excellent concentricity and vibration damping through uniform hydraulic pressure. Ideal for high-precision applications.

• Automatic Tool Changers (ATC): Integrated into high-end machining centers, ATCs enable rapid tool change without operator intervention, reducing cycle time and increasing automation. Compatibility with ISO, HSK, BT, and CAT tool holders must be considered.

Tool holding design affects not only tool life and machining quality but also the overall productivity of the system.

Cooling Systems

Thermal stability is a defining factor in maintaining spindle accuracy and extending its service life. Two primary cooling strategies are employed:

• Air Cooling: Simpler and cost-effective, using fans or compressed air to dissipate heat. It’s suitable for lower-speed or intermittent operations but becomes ineffective as RPM increases.

• Liquid Cooling: Circulates coolant through an internal jacket around the spindle housing, offering superior heat dissipation. Liquid-cooled systems are standard in high-speed or continuous-duty applications, particularly where tight tolerances are critical.

Proper thermal management also helps reduce thermal drift, bearing preload variation, and deformation of the spindle assembly under load.

Bearings

Bearing architecture is one of the most critical design considerations in spindle engineering. It governs load capacity, radial/axial runout, and operational longevity.

• Ball Bearings: Offer high-speed capability with relatively low friction. Angular contact ball bearings are most common in precision spindles.

• Roller Bearings: Provide greater load capacity and stiffness but are limited in speed.

• Hybrid or Ceramic Bearings: Use ceramic balls within steel races, offering low thermal expansion, reduced weight, and improved speed performance.

• Magnetic Bearings: Used in the most advanced spindles for frictionless operation at ultra-high speeds, though at significantly higher cost and complexity.

Bearing preload, lubrication type (grease vs. oil-air), and dynamic balancing are all vital to maintaining accuracy and mitigating wear under demanding conditions.

CNC Spindle Applications Across Industries

The CNC spindle, as the rotational core of material processing, must be adapted to the operational context of each industry.

From ultra-precision machining to high-load, abrasive environments, spindle performance parameters—such as torque profile, thermal stability, housing material, and tool interface—are carefully optimized to suit sector-specific demands.

Below is an overview of how spindle technology is tailored for key industrial applications.

Aerospace: High-Precision Aluminum and Titanium Machining

In aerospace manufacturing, CNC spindles are subjected to stringent requirements for dimensional accuracy, surface integrity, and material adaptability.

Components such as turbine blades, structural airframe elements, and housings often involve difficult-to-machine alloys like titanium and Inconel, as well as high-speed milling of aluminum.

• Spindle Requirements:

  • High torque at low-to-medium RPM for titanium cutting

  • High-speed, thermally stable performance for aluminum machining

  • Excellent runout control and dynamic stiffness to meet ±5 µm tolerances

  • Liquid-cooled, direct-drive or integral spindles are common in 5-axis aerospace mills

Robotics: Lightweight, Precision-Mounted Spindles

In robotic machining and material finishing systems, spindles must be compact and lightweight while maintaining precise speed and torque control.

They are often mounted on articulated arms with payload limitations.

• Spindle Requirements:

  • Low mass and reduced footprint for dynamic mounting

  • High acceleration/deceleration response

  • Adaptive speed control for path-following precision

  • Typically use air-cooled, high-speed spindles with compact tool holders

Friction Stir Welding (FSW): High Thrust and Thermal Resistance

Friction stir welding utilizes a rotating, non-consumable tool to join materials through solid-state welding, requiring high axial thrust and thermal robustness at relatively low spindle speeds (300–1,500 RPM).

• Spindle Requirements:

  • High axial rigidity to maintain consistent plunge depth and weld path

  • Sustained operation under elevated temperatures without thermal drift

  • Robust bearings and housing for heavy thrust loads

  • Specialized liquid-cooled spindles integrated with thrust sensors and force-feedback systems

Stone and Glass Processing: Harsh Environment Spindles

Machining of granite, marble, ceramics, or glass involves high-abrasion, low-ductility materials, requiring spindle systems that can withstand dust, slurry, and shock loads.

• Spindle Requirements:

  • Sealed spindle housings with IP65+ protection ratings

  • Water or oil-cooled systems to mitigate thermal expansion from high-speed routing

  • Corrosion- and wear-resistant construction (e.g., stainless steel housings, ceramic bearings)

  • Spindles often equipped with diamond tooling and vibration dampers

Woodworking and Furniture Manufacturing: High-Speed Routing

In wood and composite board machining, the priority is speed and repeatability over high torque or extreme accuracy.

Applications include cabinetry, moldings, furniture components, and decorative panels.

• Spindle Requirements:

  • Extremely high RPM (up to 40,000+) for clean cuts and smooth edges

  • Air-cooled spindles for simplicity and cost-efficiency

  • Quick tool change systems to accommodate complex routing paths

  • Integrated dust extraction or vacuum ports to manage debris

Food Processing: Sanitary, Corrosion-Resistant Spindle Systems

In the food and pharmaceutical sectors, spindles are utilized for cutting, shaping, and polishing of consumable-grade products or containers. Compliance with hygienic standards is paramount.

• Spindle Requirements:

  • FDA-approved, food-safe materials (e.g., stainless steel, PTFE seals)

  • Washdown-capable enclosures with smooth, crevice-free surfaces

  • Corrosion-resistant bearings and lubricant-free operation when possible

  • Moderate-speed, low-noise designs with minimal maintenance intervals

How CNC Spindles Impact Machining Quality

The performance of a CNC spindle is not isolated—it directly governs multiple facets of machining quality.

Spindle design and operation influence not only the geometry of the final part, but also the durability of cutting tools, cycle times, and repeatability of complex operations.

Understanding these impacts allows engineers to better diagnose defects, fine-tune process parameters, and select spindles based on specific production goals.

Surface Finish

A part’s surface finish is a critical quality parameter in aerospace, medical, mold-making, and precision engineering applications.

The spindle’s rotational speed, vibration behavior, and dynamic balance all influence the surface roughness (Ra) of the machined component.

• High spindle RPM enables finer chip formation and reduced tool marks—especially critical for high-speed finishing operations.

• Low vibration and high dynamic stiffness minimize micro-chatter and tool runout, which otherwise leave irregular patterns or tool marks on the surface.

• Bearing precision and thermal stability also contribute to consistent surface quality over extended production runs.

A well-optimized spindle system can achieve surface finishes below 0.4 µm Ra in precision milling and below 0.1 µm Ra in grinding applications.

Tool Life

Cutting tool longevity is closely tied to spindle behavior, particularly in terms of torque consistency, thermal control, and concentricity.

• Stable torque delivery prevents tool overload and uneven cutting, reducing the likelihood of premature edge chipping or tool breakage.

• Concentric tool rotation (minimal radial runout) ensures uniform wear distribution, particularly important for coated carbide, PCD, and ceramic tools.

• Spindle cooling systems mitigate thermal gradients that can induce tool warping or loss of hardness at high speeds.

Ultimately, a high-precision spindle can extend tool life by 30–60% compared to machines with inconsistent or outdated spindle configurations.

Machining Accuracy

Spindle-induced factors such as deflection, chatter, and backlash play a crucial role in the geometric accuracy of machined parts.

• High radial and axial stiffness ensures the spindle remains rigid under varying loads, particularly during aggressive cutting or interpolation.

• Reduced chatter through mass-balanced design and optimized preload prevents dimensional deviation and ensures tighter tolerances.

• Thermal symmetry in spindle housing and motor architecture reduces positional drift and backlash compensation errors, especially in micron-scale machining.

For applications requiring sub-10 µm accuracy—such as mold cavities, optical components, and high-tolerance aerospace parts—the spindle’s behavior under load becomes the dominant determinant of geometric integrity.

Throughput and Productivity

A modern spindle does more than spin the tool—it accelerates productivity through faster cycle times and reduced manual intervention.

• High acceleration/deceleration rates shorten tool approach and retract times, especially beneficial in multi-axis, multi-operation cycles.

• High-speed spindles reduce cutting time in soft or semi-rigid materials by increasing feed rates without compromising accuracy.

• Automatic Tool Changers (ATC), enabled by precision drawbar and tool interface design, significantly reduce idle time in complex part runs.

In high-volume manufacturing, such as automotive or electronics, a spindle optimized for fast changeover and stable high-speed cutting can reduce per-part machining time by over 20%, yielding substantial economic benefits.

Choosing the Right CNC Spindle

Selecting the appropriate CNC spindle is a mission-critical decision that determines not only the productivity and quality of machining operations but also the long-term reliability and flexibility of the CNC platform itself.

The spindle must be chosen based on a nuanced understanding of application-specific demands, material properties, machine dynamics, and operational goals.

Below are key criteria that guide spindle selection for optimal performance.

Selection Factors

Workpiece Material

Material machinability—defined by hardness, toughness, and thermal conductivity—directly affects the spindle’s required torque and speed characteristics.

• Metals like steel, titanium, or cast iron demand high-torque, lower-speed spindles with robust construction and active cooling.

• Aluminum and copper alloys benefit from mid-to-high RPM spindles for rapid chip evacuation and improved finish.

• Plastics, composites, and wood require very high-speed spindles with clean rotation and minimal thermal buildup to prevent melting or surface degradation.

Understanding chip load characteristics and thermal reactivity of the target material is crucial during spindle selection.

Speed and Torque Requirements

Spindle specifications must match the cutting strategy:

• Roughing operations benefit from high torque at moderate speeds to accommodate heavy material removal.

• Finishing operations require high RPMs and low runout for fine feature definition and superior surface quality.

• For multi-material or hybrid workflows, consider variable-speed spindles with a wide torque band and adaptive load control.

Torque curves—rather than nominal speed alone—should be analyzed to determine real-world cutting potential under load.

Machine Type and Compatibility

The spindle must be mechanically and electrically compatible with the CNC machine’s design envelope:

• Vertical machining centers (VMCs) usually support heavier, more rigid spindles.

• Router-style machines favor lighter, high-speed spindles with air cooling.

• 5-axis machines require compact, high-performance spindles that can sustain varying orientation loads and avoid thermal drift.

Considerations include mounting type (HSK, ISO, BT, etc.), controller integration (servo matching, drive voltage), and dynamic balancing with the machine base.

Tooling Size and Clamping Method

Spindle selection should match tool diameter, shank type, and tool change requirements:

• Large-diameter cutters need spindles with higher torque and stronger tool retention systems (hydraulic or mechanical chucks).

• For small tools (<6 mm), a high-speed spindle with precision collets (ER or HSK-E) is preferable.

• Automated systems benefit from spindles with ATC compatibility, integrated drawbars, and tool presence sensors.

Tool interface rigidity significantly influences vibration control and cutting force transmission.

Cooling System Preferences

Spindles generate substantial heat at high speeds or during extended heavy-load cycles. Selecting the right cooling system is essential for maintaining dimensional stability and component lifespan.

• Air cooling is suitable for short-cycle jobs or non-metallic materials.

• Liquid cooling is recommended for high-duty applications involving tight tolerances or prolonged operations.

• Hybrid cooling or thermoelectric systems may be specified in high-precision or clean-room manufacturing environments.

Thermal management directly correlates with spindle runout, bearing preload, and accuracy retention.

Industry Examples

Matching spindle configurations to real-world applications illustrates how theoretical parameters translate into performance outcomes:

These examples show how even modest variations in spindle design can lead to significant differences in machining outcomes and application range.

Expert Consultation: A Strategic Imperative

While general guidelines can be useful, expert consultation is essential when:

• Developing a custom spindle configuration for an automated cell or robotic arm

• Sourcing for multi-material workflows or 5-axis high-speed machining

• Addressing stringent tolerance, cleanliness, or thermal constraints

Experienced spindle manufacturers and system integrators can perform simulations, dynamic modeling, and ROI assessments to guide optimal selection, ensuring that the spindle aligns precisely with production demands, tool paths, and machine structure.

CNC Spindle Maintenance and Repair

The CNC spindle is a high-precision, high-performance component subjected to thermal, mechanical, and dynamic stresses during operation.

Regular maintenance and prompt repair are essential not only to extend spindle life but also to uphold machining accuracy, tool life, and productivity.

Neglect in this area often results in costly downtime, reduced part quality, and premature failure of critical machine systems.

Routine Maintenance

Preventive maintenance routines serve as the first line of defense against spindle degradation. A disciplined approach to inspection and upkeep can help detect early-stage issues before they escalate into major failures.

Visual Inspection

• Signs of Overheating: Discoloration around the spindle housing, burnt coolant residue, or thermal distortion indicates a breakdown in cooling or excessive load.

• Oil or Grease Leaks: Leaks around the spindle nose or bearing zones may point to seal failure or overpressurized lubrication systems.

• Physical Damage: Cracks, scoring, or burrs on tool holders or drawbars compromise tool concentricity and must be corrected immediately.

Noise Monitoring

• Bearing Noise: A high-pitched whine, growling, or periodic knocking is often symptomatic of bearing wear or preload failure.

• Resonance: Abnormal acoustic signatures during speed ramps or cutting may indicate dynamic imbalance or loose spindle components.

• Implementing acoustic emission sensors or vibration monitoring tools enables predictive diagnostics in smart manufacturing environments.

Lubrication Management

• Manual Lubrication: Regular greasing or oil injection according to OEM specs is critical for spindles without closed-loop systems.

• Automatic Lubrication: For integrated systems, verify correct dosing and purge intervals; monitor pressure sensors and lubricant purity.

• Incorrect lubrication can lead to bearing pitting, excessive thermal generation, and reduced radial stiffness.

Cooling System Upkeep

Spindle cooling—whether air or liquid—is vital for thermal stability, bearing life, and dimensional consistency.

• Air Cooling Systems:

  • Ensure filters and ducts are free of dust and obstructions.

  • Monitor fan performance and electrical load on blower units.

• Liquid Cooling Systems:

  • Regularly flush coolant lines and replace with deionized water or OEM-recommended coolant to prevent scale buildup.

  • Monitor coolant conductivity, flow rate, and reservoir contamination.

  • Periodic checks of seals and fittings are required to avoid leaks that compromise both thermal control and spindle electronics.

Failing to maintain effective cooling can lead to thermal drift, spindle distortion, and accelerated wear of tool interfaces.

Common Troubleshooting Scenarios

Overheating

• Possible Causes: Excessive duty cycles, coolant pump failure, contaminated lubricant, spindle overload.

• Solution: Inspect cooling flow rate, verify spindle load percentage (via control interface), and inspect for blockages or fan failure.

Excessive Vibration

• Possible Causes: Imbalance in the spindle or tool assembly, worn bearings, loose housing or mounting, poor toolholder concentricity.

• Solution: Rebalance the spindle-tool system, replace bearings if runout exceeds tolerance, and recheck clamping torque and preload.

Loss of Precision

• Possible Causes: Toolholder misalignment, drawbar malfunction, thermal expansion, worn bearings.

• Solution: Use a dial indicator or laser measurement to verify axial and radial runout. Ensure tool retention force meets spec and spindle alignment is within micron limits.

Advanced CNC machines may integrate in-situ spindle diagnostics for real-time compensation or predictive alerts.

Replacement Intervals

Although usage intensity and material types greatly affect service intervals, general guidelines include:

Recording operating hours, thermal cycles, and maintenance history in a digital logbook supports predictive maintenance strategies.

Professional Repair Services

For advanced failures, spindle disassembly and rebuilding require precision calibration equipment, cleanroom environments, and certified technicians. Attempting in-house repairs without the proper tools and alignment rigs can lead to further damage.

Services Typically Offered:

• Spindle Rebuilds: Complete disassembly, bearing replacement, regrinding of mating surfaces, and tolerance restoration.

• Dynamic Balancing: Correction of mass asymmetries in the rotor and toolholder interfaces to reduce vibration at high RPMs.

• Realignment and Runout Correction: Laser calibration and axial/radial tramming of spindle position to original factory specs.

Trusted Service Providers:

• Setco: Known for OEM-grade spindle rebuilding, balancing, and design upgrades.

• GCH Tool Group: Offers comprehensive spindle repair, reverse engineering, and retrofit services for both high-speed and heavy-duty spindles.

When choosing a provider, verify ISO certification, turnaround time, and warranty conditions. Always require a spindle test report and balancing certificate upon completion.

Advanced Spindle Technologies

The evolution of CNC spindle technology has accelerated dramatically in recent years, driven by the demands of high-precision industries, the miniaturization of components, and the emergence of data-driven manufacturing.

Today’s most advanced spindle systems not only push the boundaries of speed and accuracy but also incorporate intelligent sensing, adaptive feedback, and full integration into the Industrial Internet of Things (IIoT).

These enhancements significantly improve process control, spindle longevity, and overall equipment effectiveness (OEE).

High-Frequency Spindles

High-frequency (HF) spindles are specialized units designed to operate at rotational speeds exceeding 40,000 RPM, with some reaching over 100,000 RPM.

These are essential for applications requiring ultra-fine resolution and minimal tool load.

Applications and Characteristics:

• Micromachining: Ideal for electronics, dental, and medical device industries, where features are measured in microns.

• Tooling: Typically paired with micro end mills or diamond-coated tools.

• Precision Finishing: Exceptional surface finish and minimal burr generation in non-ferrous metals, plastics, and composites.

• Construction: Often motorized (integral design), with ceramic hybrid bearings to withstand high centrifugal forces and thermal gradients.

Due to the extreme speeds, HF spindles rely exclusively on liquid cooling, air-bearing designs, and active balancing systems to maintain sub-micron concentricity and thermal stability.

Smart Spindles with Embedded Sensors

Modern spindles are increasingly embedded with sensor networks that enable real-time monitoring of critical parameters, transforming them from passive cutting components into active process intelligence nodes.

Sensor Types and Functions:

• Vibration Sensors (Accelerometers):

  • Detect chatter, imbalance, bearing degradation.

  • Feed into adaptive control systems that can slow or halt machining to prevent tool breakage or scrap generation.

• Temperature Sensors:

  • Embedded in housing or bearing zones to detect thermal overload.

  • Enable pre-emptive cooldown cycles or machine interlocks.

• Force and Torque Sensors:

  • Monitor cutting forces to ensure optimal engagement and detect collision events.

  • Useful for precision machining of brittle or layered materials (e.g., CFRP).

This sensor fusion allows for closed-loop corrections at the controller level, dynamically adjusting feed rate, spindle speed, or even halting the operation to avoid catastrophic failures.

IoT Integration and Industry 4.0 Connectivity

The integration of CNC spindles into IIoT ecosystems enables predictive maintenance, remote diagnostics, and comprehensive performance analytics. This connectivity is essential in modern smart factories and high-volume, high-uptime environments.

Key Benefits:

• Predictive Maintenance:

  • Real-time telemetry data (temperature, vibration, RPM, duty cycles) is analyzed using machine learning algorithms.

  • Failure modes such as bearing wear, thermal overload, or lubrication breakdown are predicted before they cause downtime.

• Performance Analytics:

  • Spindle utilization metrics (cutting vs. idle time), tool change frequency, and speed-load curves can be logged to optimize production planning and OEE.

• Remote Monitoring and Control:

  • Supervisors or OEMs can remotely access spindle health status, firmware versions, and run diagnostics.

  • Integration with cloud platforms or on-premise SCADA systems enables alert notifications and batch-level traceability.

Examples of Implementation:

• Siemens SINUMERIK Spindle Monitoring: Enables spindle diagnostics and service alerts via integrated CNC dashboards.

• FANUC AI Servo Monitor: Collects operational data across spindles and axes for machine learning–driven maintenance alerts.

• Heidenhain’s Connected Spindle Technology: Offers adaptive control and digital twins for simulation-based spindle performance planning.

Conclusion

The CNC spindle stands at the core of every precision machining operation—quite literally the “heartbeat” of the machine tool.

From its fundamental role in determining surface finish and dimensional accuracy to its impact on productivity and tool life, the spindle is far more than just a rotating component—it is the keystone of advanced manufacturing capability.

As we’ve explored throughout this guide, selecting the appropriate spindle type—whether belt-driven, direct-drive, or motorized—requires careful evaluation of materials, machining requirements, and system compatibility.

Attention to technical specifications such as power, speed range, bearing design, and cooling mechanisms is essential to achieving reliable performance and long-term return on investment.

Equally critical is ongoing maintenance. Preventive measures like vibration monitoring, lubrication control, and thermal management not only extend spindle life but also protect against unplanned downtime and costly scrap.

Advanced spindles equipped with embedded sensors and IoT connectivity now enable real-time diagnostics, predictive maintenance, and closed-loop control—ushering in a new era of smart machining.

For manufacturers looking to remain competitive in today’s high-precision, high-throughput environment, investing in the right spindle technology is no longer optional—it is strategic.

Whether you are machining aerospace alloys, micro-components, or high-volume automotive parts, the spindle’s configuration and condition will define your process stability, speed, and final quality.

Stay informed. Evaluate spindle technologies in alignment with your application goals. And when in doubt, consult spindle specialists or OEMs who can help tailor solutions for your specific manufacturing challenges.

With proper guidance, optimized spindle performance isn’t just achievable—it becomes a powerful driver of innovation and efficiency in your operation.
